电动托盘堆垛叉车 CDD ML16AP(1.6吨)

品牌: 林德(Linde)
价格:
49000.00
额定承载(Kg): 1600
提升高度(mm): 2695 - 4970
产品特点: 站驾式,水平搬运、拣选作业,堆垛作业,林德易驾操作舵柄,进口控制器,交流驱动电机,电子转向,可折叠站板及护臂,比例提升功能,提升末端自动切断提升电机,转弯自动减速 ,电池侧面更换,聚氨酯双承载轮
产品详情


电动托盘堆垛叉车

Electric Pallet Stackers

载重CAPACITY 1600 kg

ML16AP   CDD   1165

安全性Safety

标配转弯自动半速功能,过弯更平稳。标配站板感应开关,防止误操作。蓄电池自动保护功能,低电量时叉车将自动切断提升功能,延长电池寿命

Automatic half speed turning function, more smooth in turning.Standard platform switch to prevent mis operation. Battery discharge protection can cut-off lifting function automatically at low voltage for a longer lifetime.

高性能Performance

标配龟速按钮,即使狭窄空间也能轻松适应。标配侧面更换电池箱,多种电池容量可选,以满足客户工况需求。电子转向功能只需要很小的转向力就可以轻松、方便的控制叉车

Creep speed button as standard, even the narrow space can be easily operated. Side battery change and multiple battery capacity ensure that each truck is precisely matched to the demands of individual applications. Superior driving comfort with minimum effort due to electric steering.

舒适性Comfort

人机工程学设计将操作者和叉车完美结合。集中式操作手柄,对驾驶员的双手提供全面的保护。侧面的护臂带有泡沫保护垫,以保护安全舒适;

A perfect interface between operator and truck has achieved with the ergonomic design concept. The centralized tller protect operator's hands safely. The lateral side guards are covered with foam protection to provide safe and comfortable holding.

可靠性Reliability

该款叉车采用可靠的进口牌子部件,保证长时间工作的可靠性电磁制动系统确保安全驾驶。聚氨酯驱动轮8双承载轮,路面通过性好。Can-Bus 总线系统可方便快速的读取叉车数据。

This truck has reliable imported brand components to ensure the reliability of long working time. Reliable electric braking system ensures safety operation. Can-Bus architecture enables fast, easy access to all truck data.

易维护Service

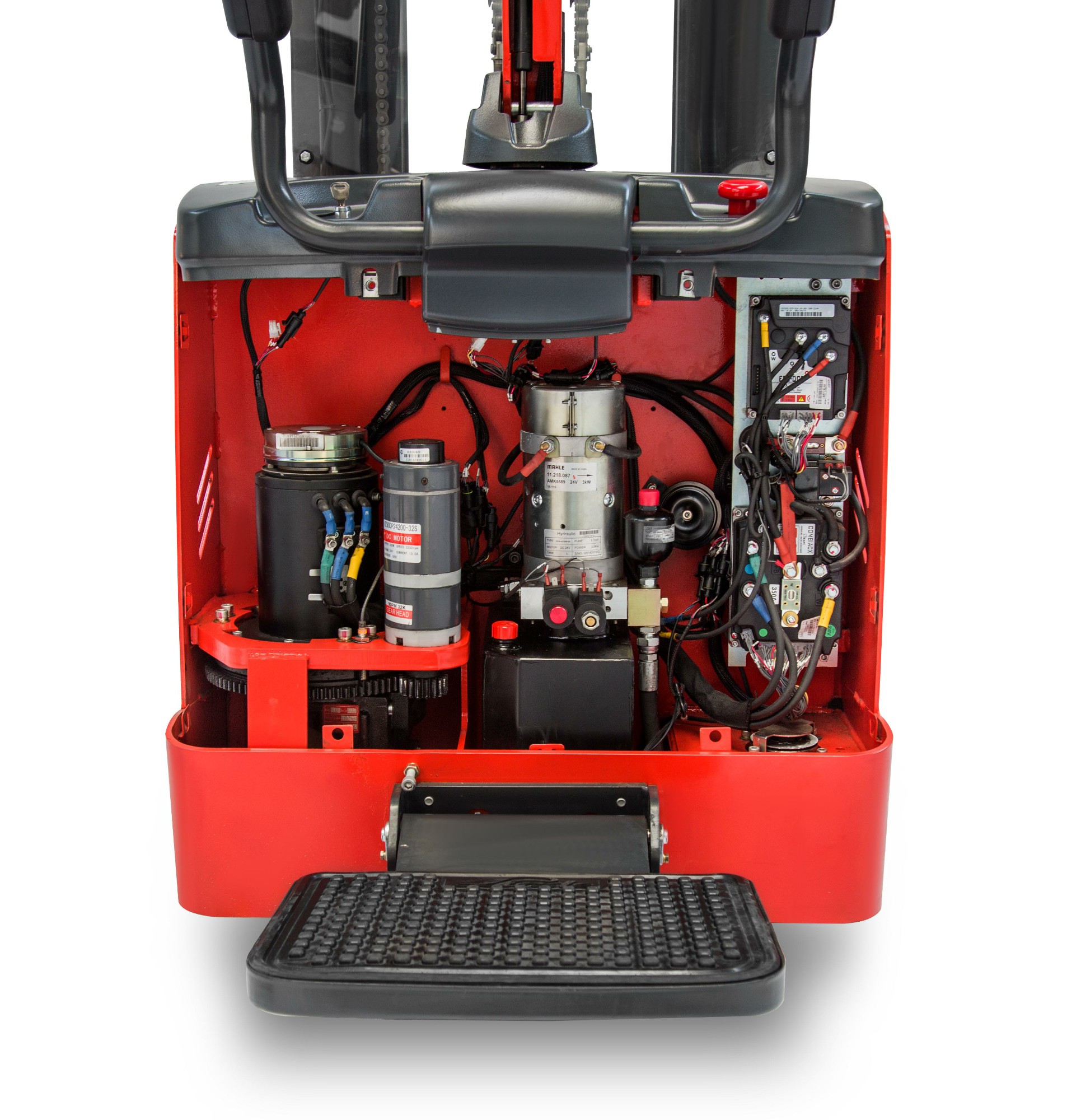

所有内部元件都布置在可方便拆卸的罩板下面,触手可及,维护方便。售后工程师可以根据客户的工况对整车参数进行调节,以适应客户需求。

All internal components and servicing points well accessible behind detachable hood. All the performance parameters can be configured easily to match the requirements of the customer's application.



特点Features

转向系统

Steering system

→电动转向,操作轻便、平稳

→转弯自动减速,确保转弯稳定性

→龟速功能保证了狭窄通道内的操作性

→Electrical steering for effortless,precise operation.

→Stable automatic speed reduction in cornering.

→Creep speed function ensures high maneuverability in narrow space.


提升系统

Lifting system

→提升限位:货叉提升至顶部,自动切断提升电机,确保安全

→双速下降:空载时快速下降确保效率,带载时可使用为慢速下降功能,保证平稳卸货

→Lifting limit: cut-off the lfting motor automatically at max. lifting height to ensure stability.

→Dual lowering speed: fast lowering function can be used in no-load, slow lowering function can be used in load to ensure efficiency and stability.


操作平台Operation platform

→全面的手部保护

→舵柄空间大,即使带上手套也能操作自如

→Wrap-around hand operation

→Comfortable controls, operable with either hands and gloves.


驱动控制系统Drive system

→免维护的交流电机

→进口牌控制器,控制精准,参数可调

→Maintenance-free AC drive motor.

→Imported brand controller provides precise control and adjustable parameters


制动系统Braking system

→舵柄在竖直/水平位置实现自动制动

→松开行驶控制开关,叉车自动制动

→防撞开关,确保车子与人的安全距离

→紧急制动开关触手可及

→Automatic braking when tller is moved fully up or down.

→Automatic braking on releasing travel control switch.

→Belly switch ensures a safety distance

→Emergency button close to your hand.


标准配置和选项Standard and Optional Equipment

标准配置Standard Equipment

→免维护驱动电机Maintenance-free AC drive motor

→ZAPI控制器ZAPI controller

→电动转向Electircal steering

→电磁制动Electromagnetic brake

→聚氨酯驱动轮和承载轮Polyurethane drive and load wheel tyres

→宽视野标准门架提升高度2,950mmClearview standard mast lift 2,950mm

→整体式货叉架570/1150mmFork carriage: 570/1150mm

→侧面更换电池箱Lateral battery change

→24V/210Ah电池Battery 24V/210Ah

→龟速功能Creep speed function

→仪表可显示小时数、电量、故障代Multifunction display with hourmeter, discharger indicator and fault codes


可选配置Optional Equipment

→可提供不同提升高度的宽视野门架Various masts for different lift heights available

→280Ah/345Ah大容量电池Big battery capacity 280Ah/345Ah

→比例提升控制系统Proportional lfting control

→可移动侧面更换平台(二电池位)Battery Trolley, 2 batt.

→护顶架Overhead guard


载荷曲线图

Lifting capacity diagrams



门架参数表 Mast Datasheet(in:mm)
